BLUESCOPE ZACS®
BLUESCOPE ZACS® FEATURES
Abundance Colour Choice
Unique Textures
Made with BlueScope’s Proprietary Technology
Heat Reduction & Energy Saving
Long Warranty for Assurance
Superior Anti-Corrosion Coating
Premium Durability
ISO-Certified Manufacturing
BlueScope Zacs® Finishes & Materials
:quality(50))
BlueScope Zacs® Bare
:quality(50))
BlueScope Zacs® Natural
:quality(50))
BlueScope Zacs® Cool
:quality(50))

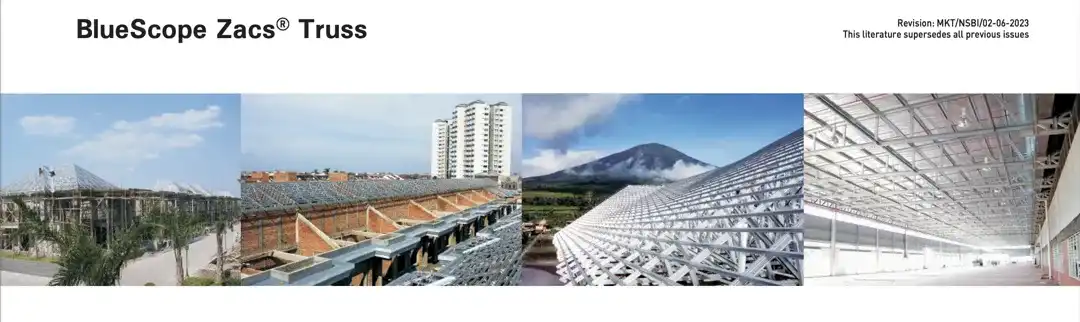

BlueScope Zacs® Truss for Structure
Testing Standard
Coating Descriptions | BlueScope Zacs(R) Natural | BlueScope Zacs(R) Minimalist | BlueScope Zacs(R) Cool |
|---|---|---|---|
Preffered Subtrates: | G550 AZ100 (Zn/Al Alloy-Coated Steel) G300 AZ100 (Zn/Al Alloy-Coated Steel) | G550 AZ100 (Zn/Al Alloy-Coated Steel) G300 AZ100 (Zn/Al Alloy-Coated Steel) | G550 AZ100 (Zn/Al Alloy-Coated Steel) G300 AZ100 (Zn/Al Alloy-Coated Steel) |
Pre-treatment: | Corrosion resistant proprietary conversion coating | Corrosion resistant proprietary conversion coating | Corrosion resistant proprietary conversion coating |
Topside Primer Coat: | Universal corrosion inhibitive. Nominal thickness : 5 micron. | N/A | N/A |
Finishing Coat : | Custom formulated polyester wrinkle paint system. Nominal dry film thickness 13µm on the top or weather side. The finish coat can, if required, be applied to both sides to provide a double-sided product. | Custom formulated polyester wrinkle paint system. Nominal dry film thickness 13µm on the top or weather side. The finish coat can, if required, be applied to both sides to provide a double-sided product. | Custom formulated system. PVDF coating system. Nominal thickness 20 micron on the top or weather side. The nish coat can, if required, be applied to both sides to provide a double-sided product. |
Backside Primer Coat: | N/A | N/A | N/A |
Backside Coat : | Custom formulated Abu Semeru. Nominal dry film thickness 5µm | Custom formulated Abu Semeru. Nominal dry film thickness 5µm | Custom formulated Abu Semeru. Nominal dry film thickness 5µm |
Coating Descriptions | BlueScope Zacs(R) Bare | BlueScope Zacs(R) Truss |
|---|---|---|
Substrates : | Low carbon steel (G300 / G550) | Low carbon steel (G550) |
Metal coating | Zn/Al coating 55%Al-Zn (AZ100 g/m2). 27 micron. | Zn/Al coating 55%Al-Zn (AZ100 g/m2). 27 micron. |
Pre-treatment : | Chromate acid passivation treatment coating | Chromate acid passivation treatment coating |
Resin Coat : | Styrene acrylic resin - clear. 0.8 - 1.5 micron. | Styrene acrylic resin - clear. 0.8 - 1.5 micron. |
Smart Choice for Long-Lasting Quality
NS BlueScope's steel products are engineered to set a new standard for construction. with over 100 years of proofen technology used worldwide, BlueScope Steel technology deliver unmatched durability, ensuring your project stand the test of time, become your legacy. Designed specifically for local weather conditions, our products are not only long-lasting but also value for money, offering you the peace of mind with every project.
